INTRODUCING THE NEXT GENERATION OF INK FOUNTAIN A
GITATORS

FlowTech Ink Agitators
(Ink Fountain Agitation System)

3 YEAR WARRANTY!



The FlowTech Ink Agitator is a one piece design that uses two agitating arms to constantly agitate the ink in the fountain..

The agitating arms are stainless and are designed to be removed from the agitator bar in seconds and require no gears or rack. The most apparent advantage to this new design is the versatility of the installation enabling the bar to be positioned almost anywhere above, in front or below the fountain therefore allowing the pressmen full access to the fountain at all times. The typical application for this design is with UV and conventional inks as well as metallic flexo

In addition to the versatility of bar location another significant advantage to our arm design is it’s capability to force ink up against the fountain roller on every pass. More and more printers are having issues with ink separation from the roller and this new design completely eliminates this problem. Another advantage is the flexibility of the stainless steel arms allowing the customer to tweek and move the arms to the desired positions as per their needs.

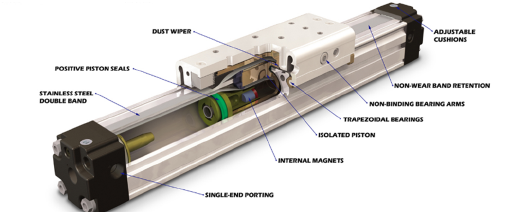

The heart of the FlowTech Ink Agitator is a patented, rodless double band pneumatic cylinder. The inner sealing band creates a tight metal-to-metal seal while the outer band keeps ink and dust away from the sealing band. This low profile agitator (1.5” x 1.5”) requires no electricity, includes a speed controller and is designed with the pressman’s safety in mind. Should anything interfere with the movement of the agitating carrier bracket, it will simply reverse direction preventing any potential accident. Agitator arms remove in seconds for easy cleaning.

Call or write today for your FlowTech Ink Agitator quote.  Please specify press type, web width, and the number of ink fountains that are to be controlled.


FEATURES:
  • Pneumatic double band air cylinder
  • One piece design
  • Complete with On/Off and Speed Control
  • 1.5" x 1.5" compact design cylinder
  • No electrical connections
  • Air powered
  • Customized mounting brackets
  • Removable agitator arms for easy cleaning
  • Simple installation with one single air line
